Home Lifting and Handling Machinery Applications Lifting and Handling Machinery

Lifting and Handling Machinery

Flatbed transport vehicle

Loader

Open All | Close All

System Solution

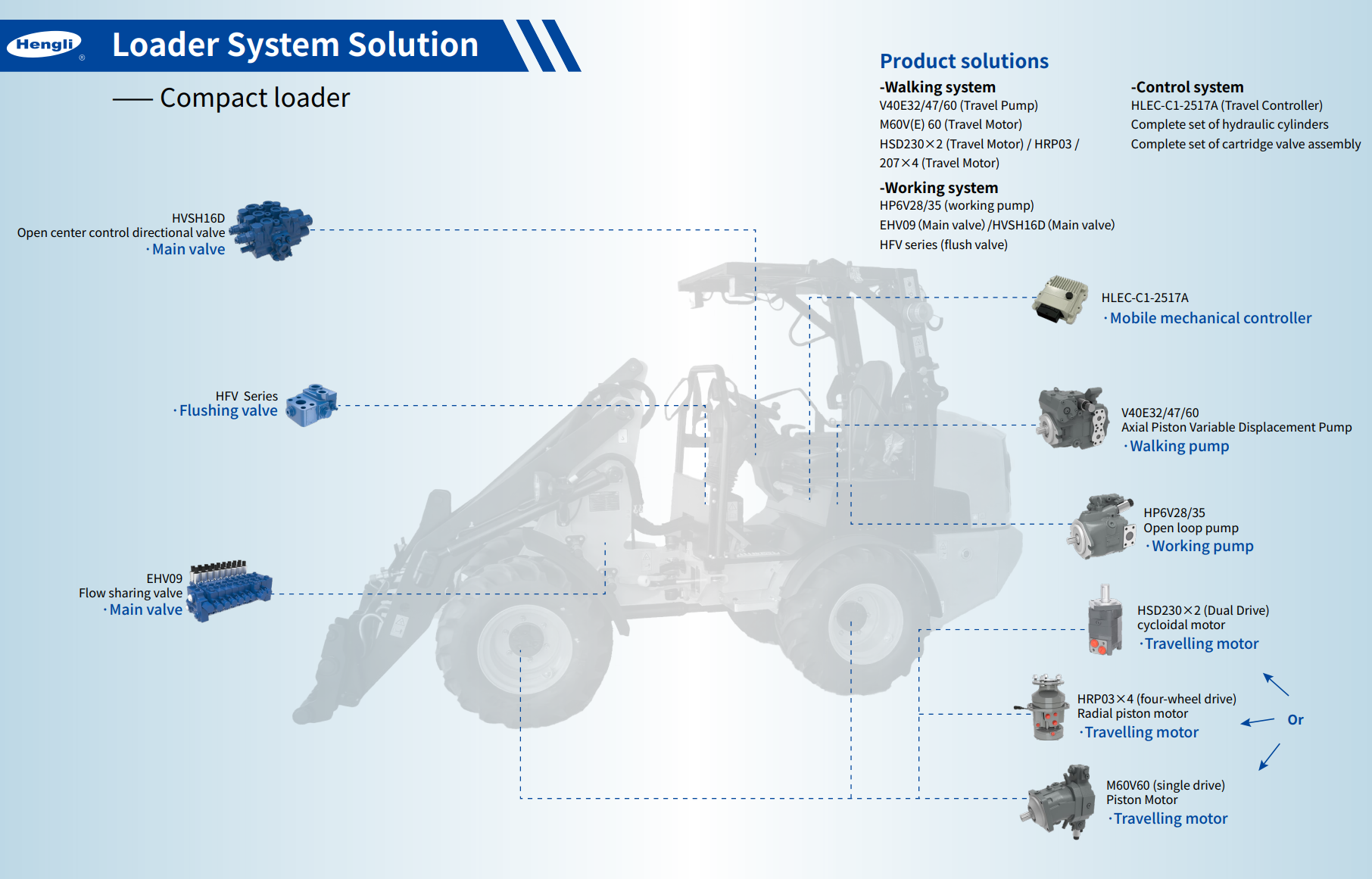

Function		Product	Catalog
Function		Product	Catalog
Walking System	Travel pump	V40E32/47/60	V40E
	Travel Motor	M60V(E)60	M60V(E)
	Travel Motor	HSD230 X2	HSD
	Travel Motor	HRP03 ×4	HRP03
Working system	Main working pump	HP6V28/35	HP6V
Working system	Main working valve	EHV09，HVSH16D	EHV , HVSH
	Flush valve	HFV	HFV
Control system	Travel Controller	HLEC-C1-2517A	HLEC-C1-2517A
	Hydraulic cylinders	Whole set of hydraulic cylinders
	Cartridge valves	Whole set of cartridge valves
	counterbalance valves	Whole set of counterbalance valves

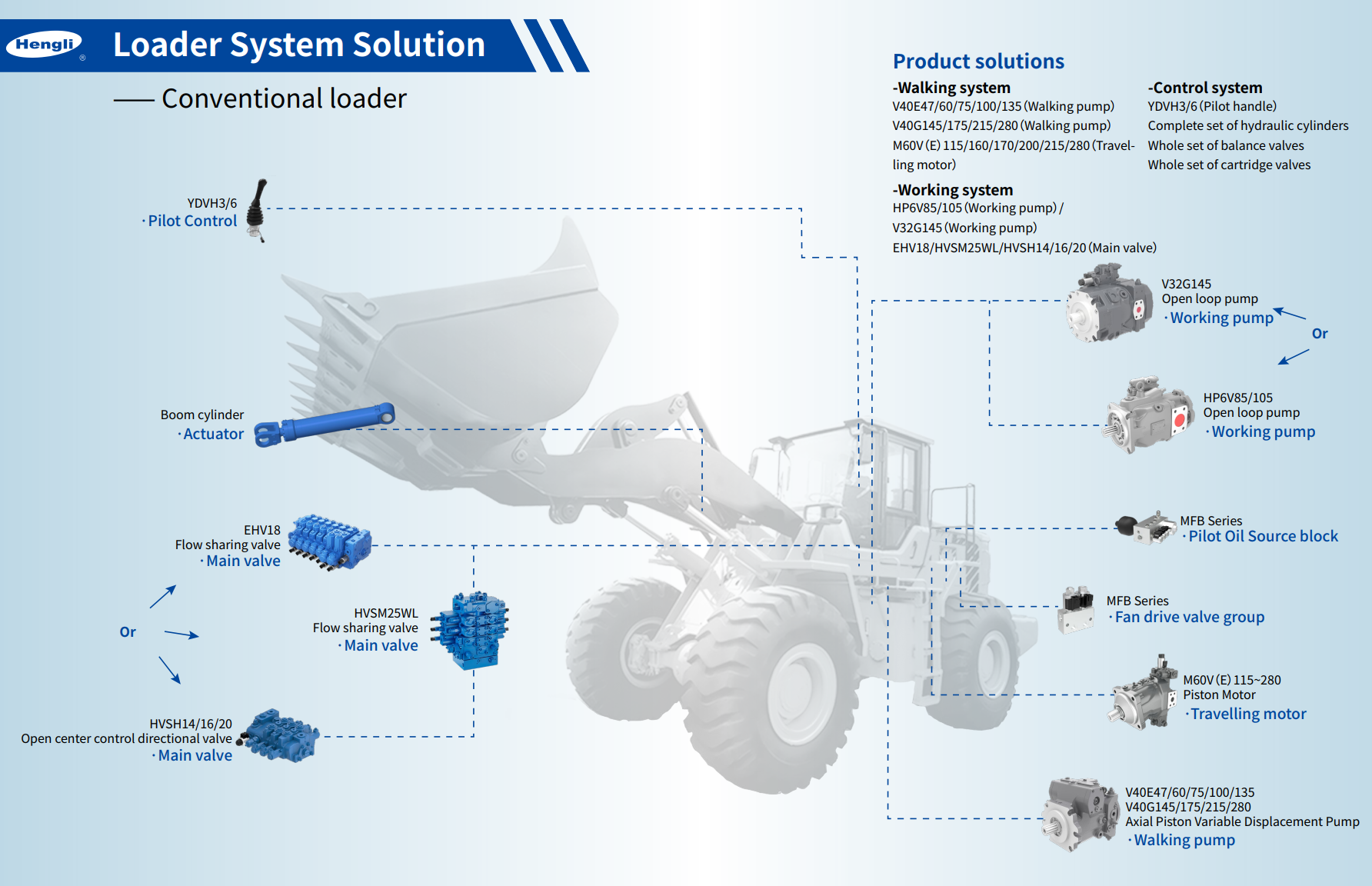

Function		Product	Catalog
Function		Product	Catalog
Walking System	Walking pump	V40E47/60/75/100/135	V40E
	Walking pump	V40G145/175/215/280	V40G
	Walking motor	M60V(E)115/160/170/200/215/280	M60V(E)
Working system	Main working pump	HP6V85/105 , V32G	HP6V , V32G
Working system	Main working valve	EHV18，HVSM25(WL) , HVSH14/16/20	EHV , HVSM25(WL) , HVSH
Control system	Pilot handle	YDVH3/6	YDVH
	Hydraulic cylinders	Whole set of hydraulic cylinders
	Cartridge valves	Whole set of cartridge valves
	counterbalance valves	Whole set of counterbalance valves

Product Advantage

- Steering Pump：

Compared with the traditional gear pump, the use of a variable piston pump can effectively reduce the energy consumption of the system; and it can provide pressure oil to the Function system when it is not turning, effectively improving the work efficiency;

- Working Pump:

It is mostly used for the dual-variable system of the outlet. The piston pump has a compact structure, and it is convenient for installation in a small space, which can increase the system pressure to achieve energy saving and efficiency;

- Working Main Valve:

Integrated boom damping eliminates travel shock, with pressure post compensated.
